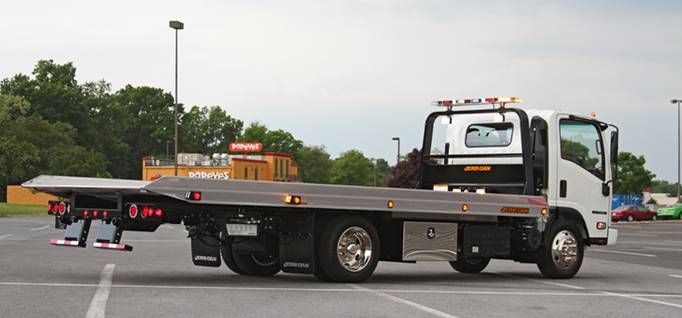

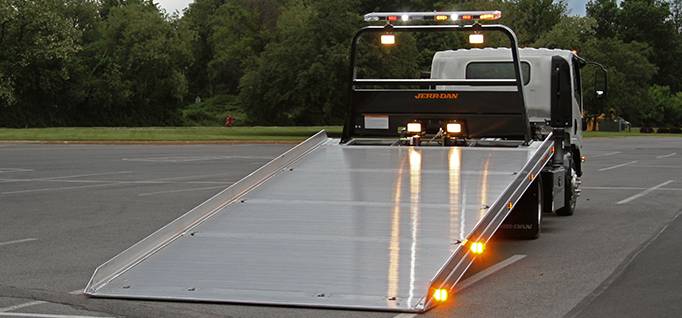

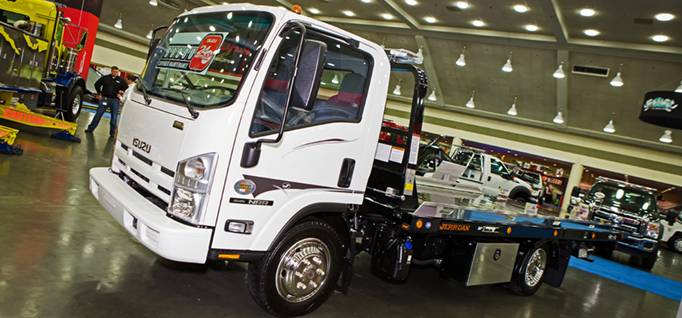

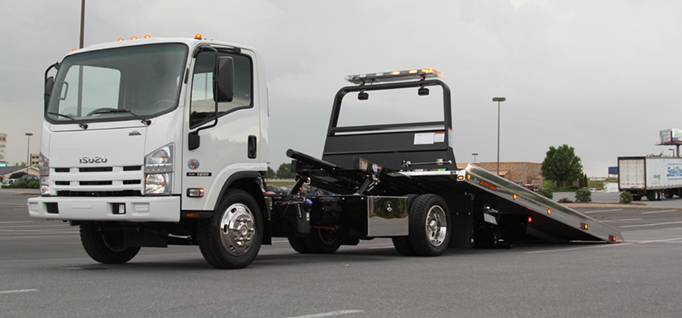

Jerr-Dan Cabover XLP (CXLP)

Get ready to tow more than ever before. The Jerr-Dan Low Profile XLP Carrier has been engineered for the Isuzu NRR and Hino 195 Cabover Engine (COE) chassis. This carrier combines a lower deck height and better load angle with improved visibility and maneuverability for performance strong enough to tow in any town.

Features:

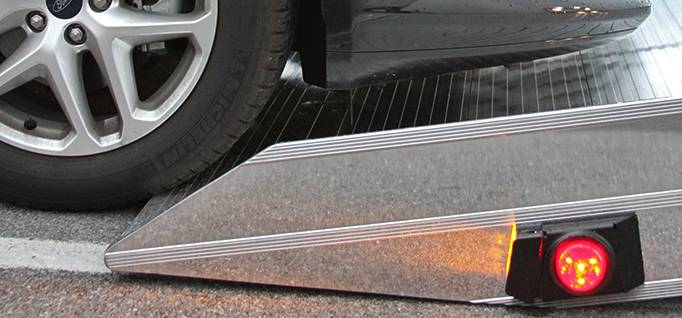

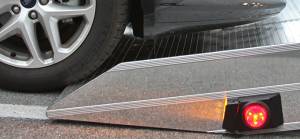

• Load angles as low as 7.5 degrees
• World's lowest maintenance carrier including No-Lube™ technology for slide pads and pivot joints
• Industry's strongest aluminum beds featuring exclusive, patented Galvanized Steel Beam Technology™
• On-board hydraulic pressure gauge allows for easy troubleshooting
• Single sheet decking on conventional and dual angle steel decks reduces weld joints and potential corrosion points
• Combination winch cable guide roller and tensioner plate
• Manual or air-controlled winch-free spool
• Corrosion resistant lighted dual-control stations
• Federal Motor Carrier Safety Administration DOT 393 compliant crash protection headboard
• Industry's most advanced high performance hose and wire cable-tracking system
• Industry's highest standard DOT reflectivity and lighting levels
• 12 key slots standard

Ligthting:

• Exclusive R.A.I.L.™ System (Rear Awareness Indicator Lights)
• LED emergency lighting
• Multiple work light mounting locations

Miscellaneous:

• Wireless remote with exclusive ARM™ (Actuated Remote Mechanism) system
• 36", 48" & 60" toolboxes, storage trays and baskets
• Galvanized subframe and wheel lift components

• Deck Length:

  • 20' XLP - Isuzu™ (no wheel lift) (19' Std available)
  • 22' XLP - Isuzu™ and Hino™ (21' Std available)
• Deck Capacity: 12,000 lbs.
• Deck Width: 96", 102"

• Deck Style (Aluminum Option):

  • Conventional or dual angle
  • Extruded 6061-T6 decking
  • Fixed or removable side rails

• Deck Style (Steel Option):

  • Conventional or dual angle
  • 3/16" diamond or smooth decking

• Winch(Worm Gear):

  • 8,000 lbs. - 3/8" x 56' wire rope
  • 10,000 lbs. - 7/16" x 56' wire rope

• Wheel Lift:

  • Lift Capacity: 3,500 lbs
  • Tow Capacity: 10,000 lbs
  • Maximum Extended Reach: 68"
  • Ground Approach Angle: 3 degrees

• Chassis:

  • Minimum RBM: 1,000,000 in. -lbs
  • Usable CA (WB): 120" - 132" (148" - 160") - 20' XLP (19' Std)
  • Usable CA (WB): 144" - 150" (172" - 178") - 22' XLP (21' Std)
  • Minimum CVWR (with wheel lift): 19,500 lbs. total (13,500 lbs. rear)
  • Minimum CVWR (without wheel lift): 15,000 lbs. total (11,000 lbs. rear)
