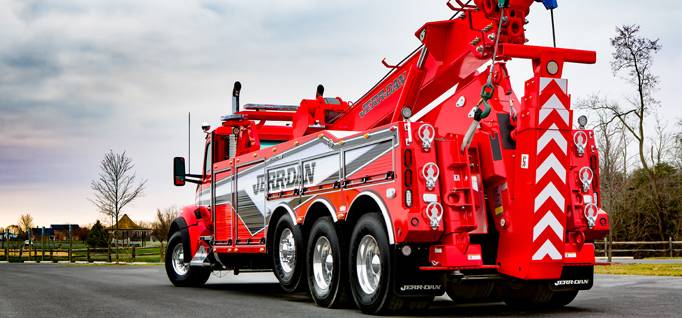

Jerr-Dan 50 Ton JFB Independent (50TJFBIND)

When you know just what you need to get the job done, look no further than Jerr-Dan’s 50 Ton JFB Independent wrecker which gives you the ability to custom design a wrecker to meet your exact specifications. Choose from tandem or tri-axle body configurations, as well as a 100,000 lb. two- or three-stage wrecker boom with dual 50,000 lb. planetary winches and 250′ of 3/4″ diameter cable per winch. Underlift reaches are available from 141″ to 181″ with positive and negative tilt capability. Available options include proportional remote controls, a 25,000 lb. super heavy duty tire lift, a 35,000 lb drag winch and more. Now built with the JFB Body, Jerr-Dan completes the package with more for your business: more towing performance, more storage, more time-saving organization. And the result? More to your bottom line.

Storage Options:

• 24" Tunnel Tool Compartment
• 24", 3/4 Height Tunnel Tool Compartment
• 24" Stand Alone Tool Compartments
• 24", 3/4 Height Stand Alone Tool Compartments
• 24", 3/4 Height Stand Alone Tool Compartments (SRS)
• 49" Tunnel Tool Compartment
• 49", 3/4 Height Tunnel Tool Compartment
• 49" Stand Alone Tool Compartments
• 49", 3/4 Height Stand Alone Tool Compartments
• 49" Tunnel Tool Compartment Tray
• 24" Under Tunnel Tool Compartment Drawer
• 49" Under Tunnel Tool Compartment Drawer
• Fold Down Tire Lift Grid Storage
• Tire Lift Organizer

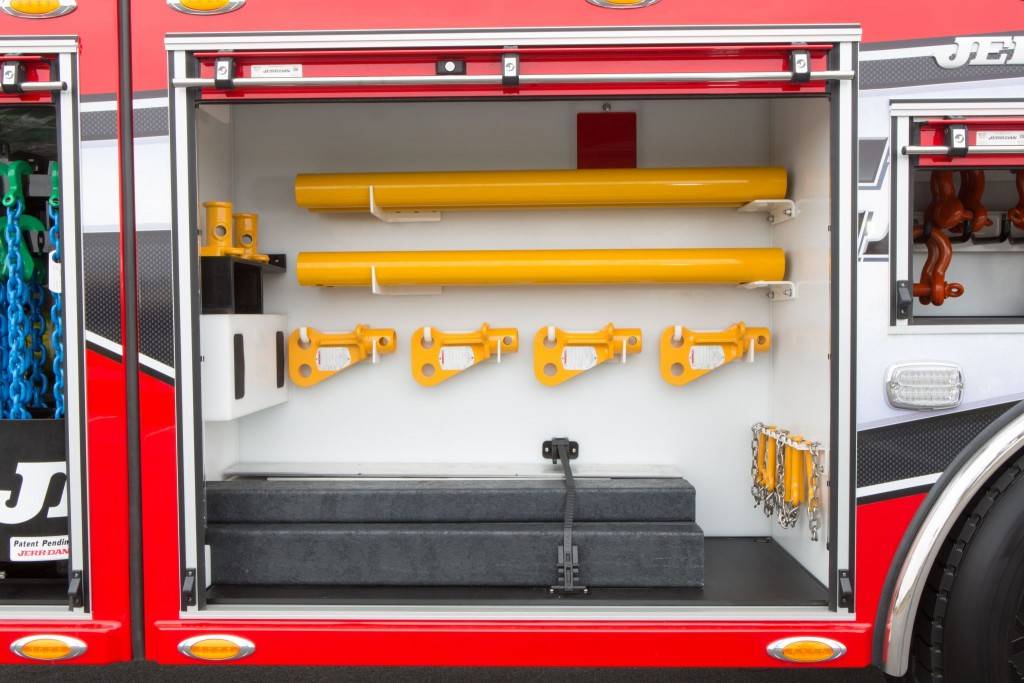

• Frame Fork Storage
• Frame Fork Storage Slide Out

Recovery System - Side Recovery System:

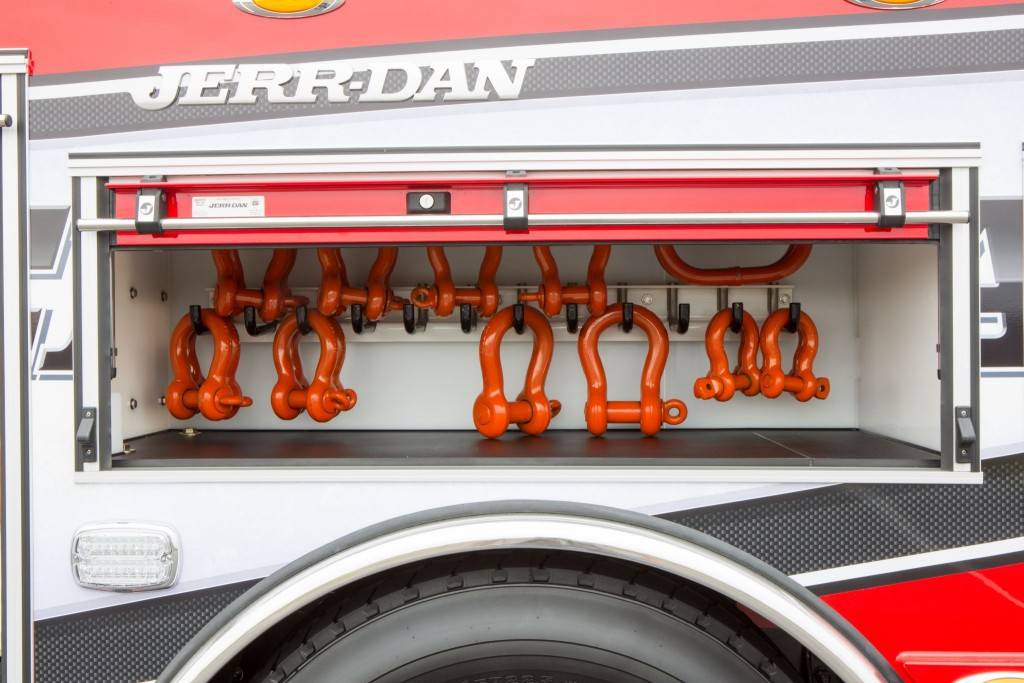

• Snatch Block, 8 Ton, 6"
• Snatch Block, 12 Ton, 8"
• Snatch Block, 12 Ton, 10"
• Snatch Block, 22 Ton, 10"

• Subrame: Painted

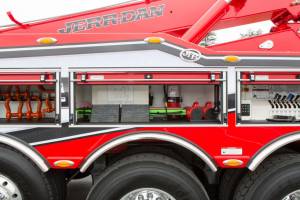

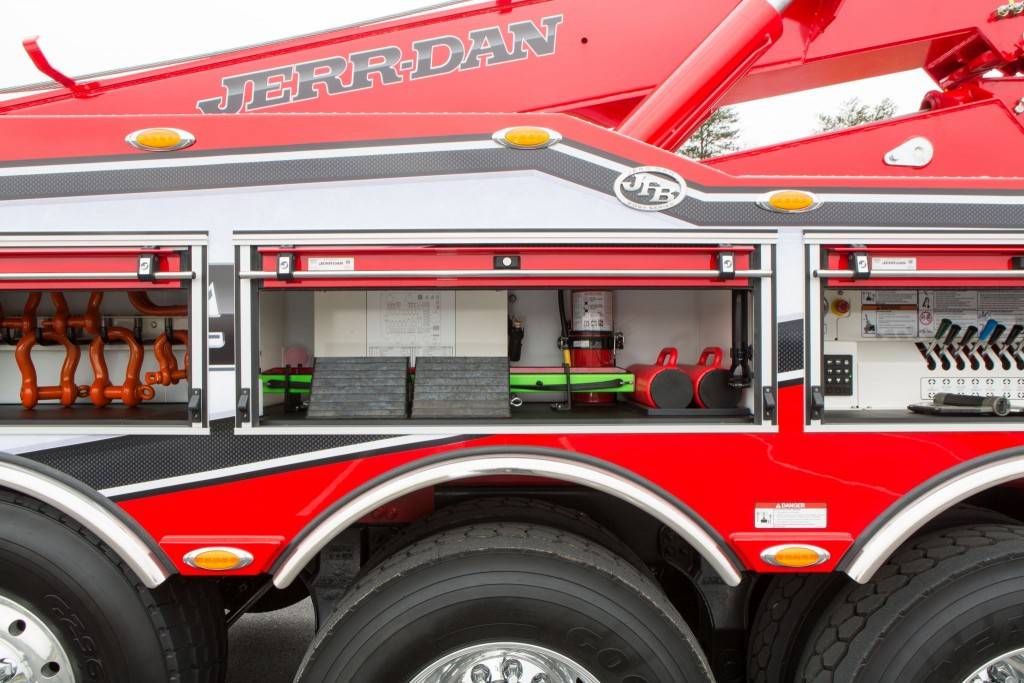

• Storage Tool Compatments: Driver and passenger side body compartments

• Under Lift:

  • U/L 530 Three Stage; Underlift Lifting / Towing Rating with Forks, Retracted 53,000 lbs. / 80,000 lbs., Extended 17,000 lbs. / 80,000 lbs.
  • U/L 565 Three Stage; Underlift Lifting / Towing Rating with Forks, Retracted 56,500 lbs. / 80,000 lbs., Extended 17,600 lbs. / 80,000 lbs.
  • U/L 565 Four Stage; Underlift Lifting / Towing Rating with Forks, Retracted 56,500 lbs. / 80,000 lbs., Extended 17,600 lbs. / 80,000 lbs.
• Wrecker Boom - Three Stage: 100,000 lbs. Retracted / 20,000 lbs. Extended @ 30 Degrees
• Winch Wrecker Boom: 50,000 lb. Planetary
• Winch Under Lift: 35,000 lb. Planetary

• Winch Cable Wrecker Boom:

  • 3/4" Dia. X 250'
  • 3/4" Dia. X 250' Swivel Hook

• Winch Cable Under Lift:

  • 5/8" Dia. X 250'
  • 5/8" Dia. X 250' Swivel Hook
  • 3/4" Dia. X 200'
  • 3/4" Dia. X 200' Swivel Hook
• Spades: Hydraulic with fold down spade foot
• Headboard/Pylon: Headboard Aluminum
