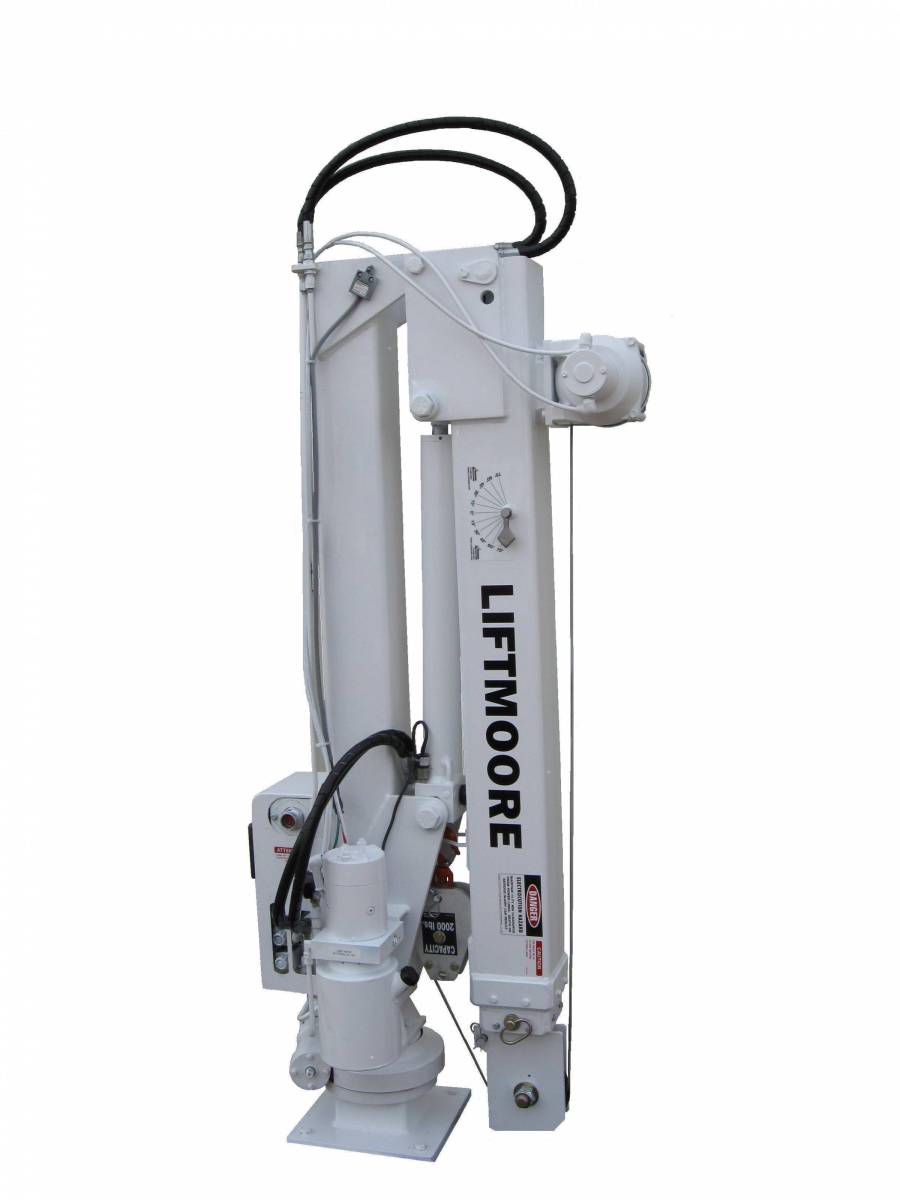

Liftmoore DC Powered Crane: LA6K Series (LA6K EX-11 ATB)

LIFT:LA6K EX-11 ATB

DC Powered Crane with 6,600 ft.-lb. moment rating and 2,000 lb max capacity

Please Call for Availability
800.877.0338

Description

DC Powered Crane with Maximum Capacity 2,000 Lbs. at 3.3 Ft. Load radius
  • Maximum Capacity 2,000 Lbs. at 3.3 Ft. Load radius
  • Planetary Gear Winch with 2.7 HP Permanent Magnet Motor: 2,000 lb. single line capacity
  • On / Off 12 Volt Electric Remote Pendant Control 18 Ft. (removable)
  • Power Rotation - Unlimited Rotation on a slewing ring, driven by a low speed high torque hydraulic motor
  • Ball Bearing allows hook to swivel under load
  • Down haul pickle weight
  • Boom Elevation - Full Power (-90 Deg. To 70 Deg.)
  • Counter balance valve (holding valve on both cylinders)
  • Boom Extension - Power 5.5 Ft. - 8.5 Ft.; Manual to 11.5 Ft.
  • Overload Protection System
  • Includes ATB, needed when crane is used in construction as per 1926.1441(d)(2) & 1926.1416(d)(3)
  • Mounting plate is 12" square with a 9.5" square bolt pattern.
  • Optional wireless radio controls are available (wireless controls maintain the use of standard wired pendant).
  • Included: Battery Power Cable #4 x 25 Ft. Circuit Breaker, 150 Amp. Ground Cable #4 x 3 Ft. for the factory battery to the truck frame. Master Disconnect Switch. Mounting Bolts Grade 8: 0.50" x 2.50" (Four). Crane-Truck Stability Plate . Recommended Installation Instructions. Owners Manual
  • Requirements: Consistent 12 Volt DC power source with sufficient amperage while crane is running under load. Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1)
  • Recommended: A dedicated battery, Group 31, deep cycle, near the crane is advised. 12K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 10,000 lbs.
