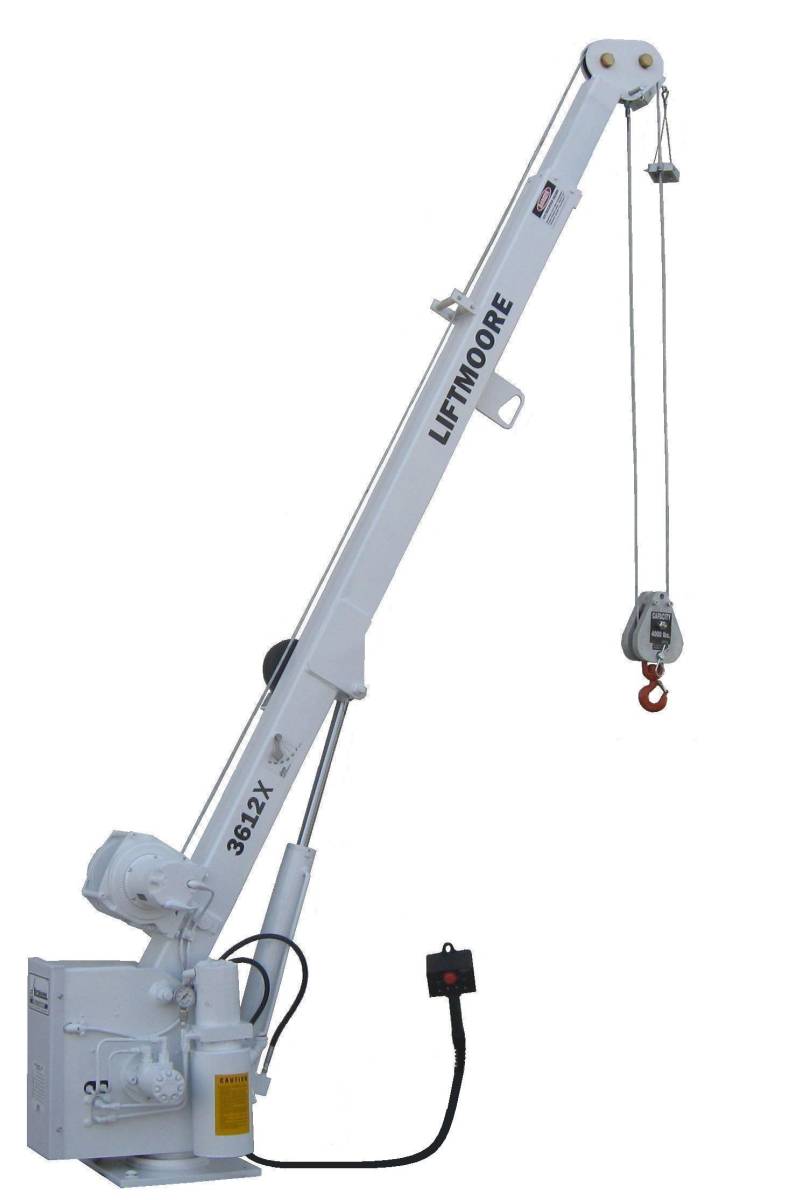

Liftmoore DC Powered Crane: 3612X Series (3612X 9-15 WI)

LIFT:3612X 9-15 WI

DC Powered Crane with 12,000 ft.-lb. moment rating and 3,600 lb. max capacity

Please Call for Availability
800.877.0338

Description

DC Powered Crane with Maximum Capacity 3,600 Lbs. at 3.3 Ft. Load radius
  • Maximum Capacity 3,600 Lbs. at 3.3 Ft. Load radius
  • Planetary Gear Winch with 2.7 HP Permanent Magnet Motor
  • On / Off 12 Volt Electric Remote Pendant Control 18 Ft. with E-Stop & audible signal function
  • Galvanized Aircraft Cable 1/4" x 62 Ft. (7,000 Lbs. Breaking Strength)
  • Travel Block w/ swivel hook for easy two part line hook up
  • Counter balance valve (holding valve on cylinder)
  • Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
  • Boom Extension - Full Power 9 Ft. - 15 Ft.
  • Wireless Remote Control
  • Digital voltmeter / ammeter, capable of Wi-Fi diagnostics through 26684 Tool
  • Overload Protection System
  • Anti-Two Block System
  • Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
  • Mounting plate is 15" square with a 12" square bolt pattern.
  • Included: Battery Power Cable #1 x 30 Ft. with Quick Disconnect Mecon. Circuit Breaker, 150 Amp (2). Ground Cable 1/0 x 3 Ft. for the factory battery to the truck frame. Master Disconnect Switch and Bracket. Mounting Bolts Grade 8: 0.50" x 2.50" (Four). Terminal Lugs #1 GA 0.25 Dia. (2). Terminal Lugs #1 GA 0.37 Dia. (2). Bubble Level . Crane-Truck Stability Plate . Recommended Installation Instructions. Owners Manual
  • Requirements: Consistent 12 Volt DC power source with sufficient amperage while crane is running under load. For optimum performance, a dedicated battery, Group 31 or larger, deep cycle, near the crane is advised. Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27860 for service body or P.N. 22158 for flat bed)
  • Recommended: 12K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 10,500 lbs..

Details

  • LIFT:3612X 9-15 WI
  • LIFT:3612X 9-15 WI
  • Liftmoore
  • New
