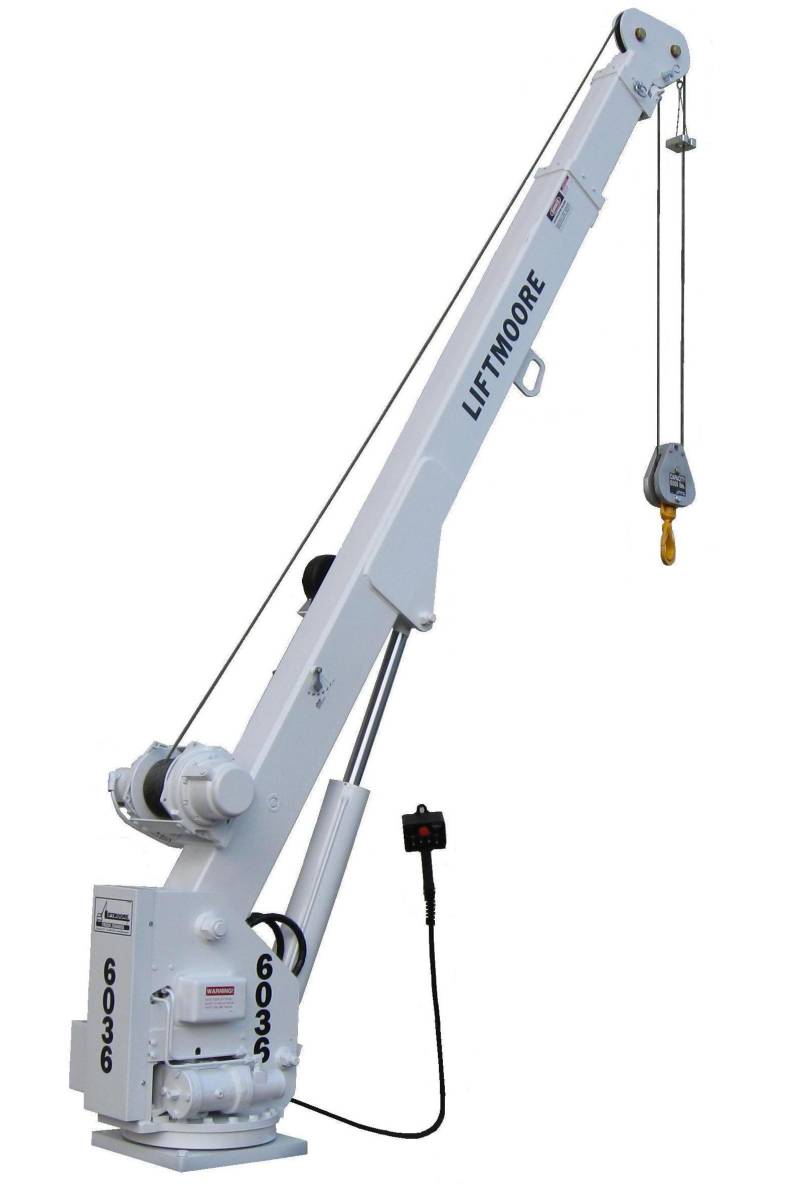

Liftmoore DC Powered Crane: 6036WX Series (6036X-20)

LIFT:6036X-20

DC Powered Crane with 36,000 ft.-lb. moment rating and 6,000 lb. max capacity

Please Call for Availability
800.877.0338

Description

DC Powered Crane with Maximum Capacity 6,000 Lbs. at 6 Ft. Load Radius
  • Maximum Capacity 6,000 Lbs. at 6 Ft. Load Radius
  • Planetary Gear Electric Winch
  • On / Off 12 Volt Electric Remote Pendant Control 25 Ft. with E-Stop & audible signal function
  • Wire Rope, 6 X 36, 5/16" x 90 Ft. (10,540 Breaking Strength)
  • Traveling Block with Roller Bearing Swivel Safety Hook
  • Power Rotation - Unlimited Boom Elevation - Full Power (-5 Deg. To 75 Deg.)
  • Boom Extension - Power 10 Ft. - 16 Ft.; Manual to 20 Ft.
  • Counter balance valve (holding valve on cylinder)
  • Wired Remote Control
  • Overload Protection System
  • Anti-Two Block System
  • Meets requirements of 29 CFR 1910.180, ANSI B30.5, SAE J1063
  • Included: Battery Power Cable #1 x 30 Ft. with Quick Disconnect Mecon. Circuit Breaker, 150 Amp (2). Circuit Breaker, 200 Amp (1). Ground Cable 1/0 x 3 Ft. for the factory battery to the truck frame. Master Disconnect Switch and Bracket. Terminal Lugs 1/0 GA 0.25 Dia. (4). Terminal Lugs 1/0 GA 0.37 Dia. (4). Bubble Level . Crane-Truck Stability Plate . Recommended Installation Instructions. Owners Manual
  • Requirements: Consistent 12 Volt DC power source with sufficient amperage while crane is running under load. For optimum performance, a dedicated battery, Group 4D or larger, deep cycle, near the crane is advised. Mounting Bolts Grade 8: 7/8" Dia. (4). Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1). Boom Rest (P.N. 27818 for service body or 24589 for flat bed)
  • Recommended: 36K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 17,500 lbs.

Details

  • LIFT:6036X-20
  • LIFT:6036X-20
  • Liftmoore
  • New
