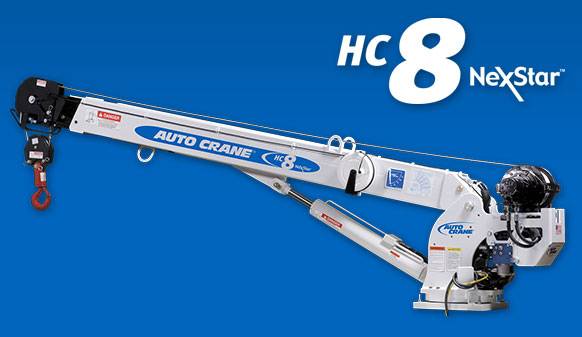

Auto Crane Hydraulic Crane (HC-8 Series)

AUTC:HC-8 Series

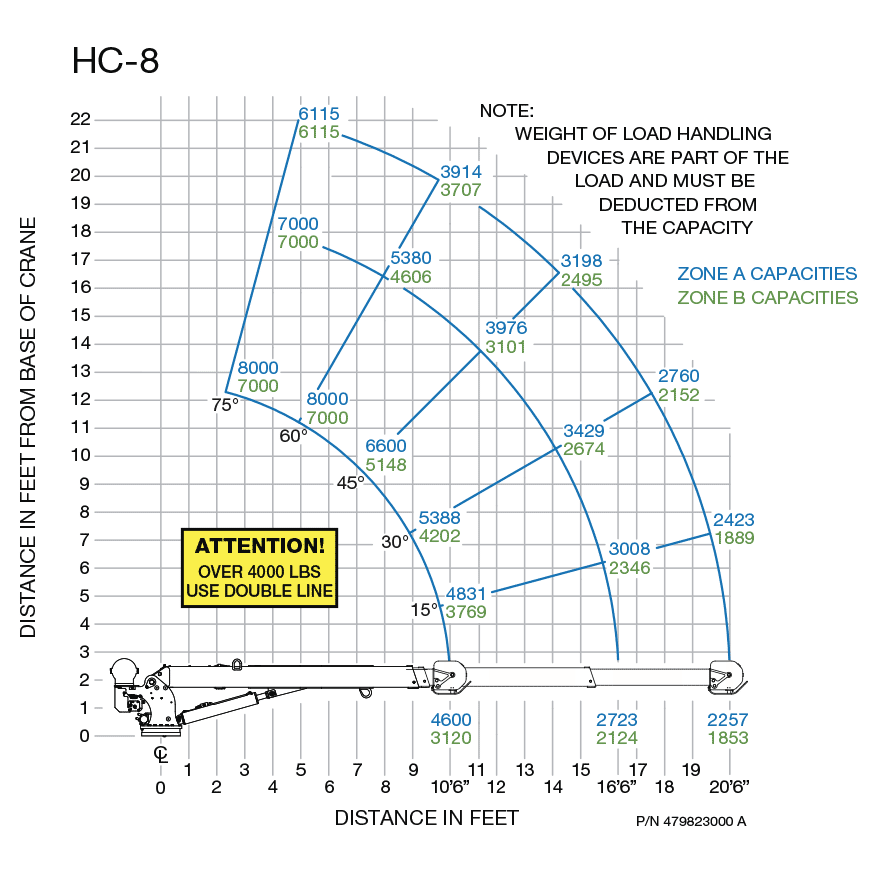

Hydraulic Crane with a 49,000 ft lb (6.77 tM) moment rating and a maximum lifting capacity of 8,000 lb (3,628 kg) at 5' 5" (1.65 m)

Please Call for Availability
800.877.0338

Description

Hydraulic Crane with a 49,000 ft lb (6.77 tM) moment rating and a maximum lifting capacity of 8,000 lb (3,628 kg) at 5' 5" (1.65 m)
  • Automatic overload protection system Keeps people, equipment, and loads safer
  • Full, non-continuous power rotation -370 Degrees movement for maximum versatility in lifting
  • -14 Degrees to +75 Degrees boom elevation Greater work area capability with maximum range of working angle limits
  • Small sheave Fits into tighter spaces
  • 95 ft (28.96 m) of 3/8" (9.52 mm) aircraft quality cable
  • Stowed Boom Length: 13' 4" (3.96 m)
  • Extended Boom Length: Width: 1' 11¼" (.59 m)
  • Width: 1' 11¼" (.59 m)
  • Height: 2' 8¾" (.83 m)
  • Base Plate Dimensions: 16.75" x 16.75" (.43 m x .43 m)
  • Single Line Speed: 55 ft/min (16.8 m/min)
  • OSHA 1910.180 ANSI B30.5

Warranty

Limited two-year factory warranty
