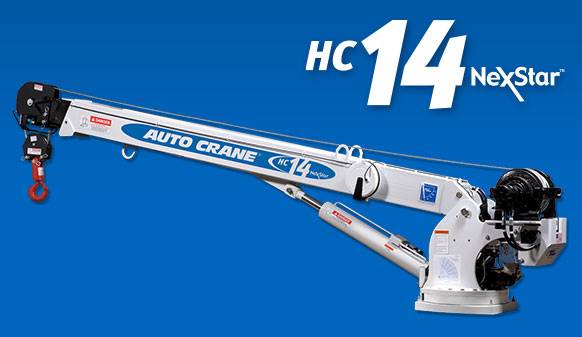

Auto Crane Hydraulic Crane (HC-14 Series)

SKU: AUTC:HC-14 Series

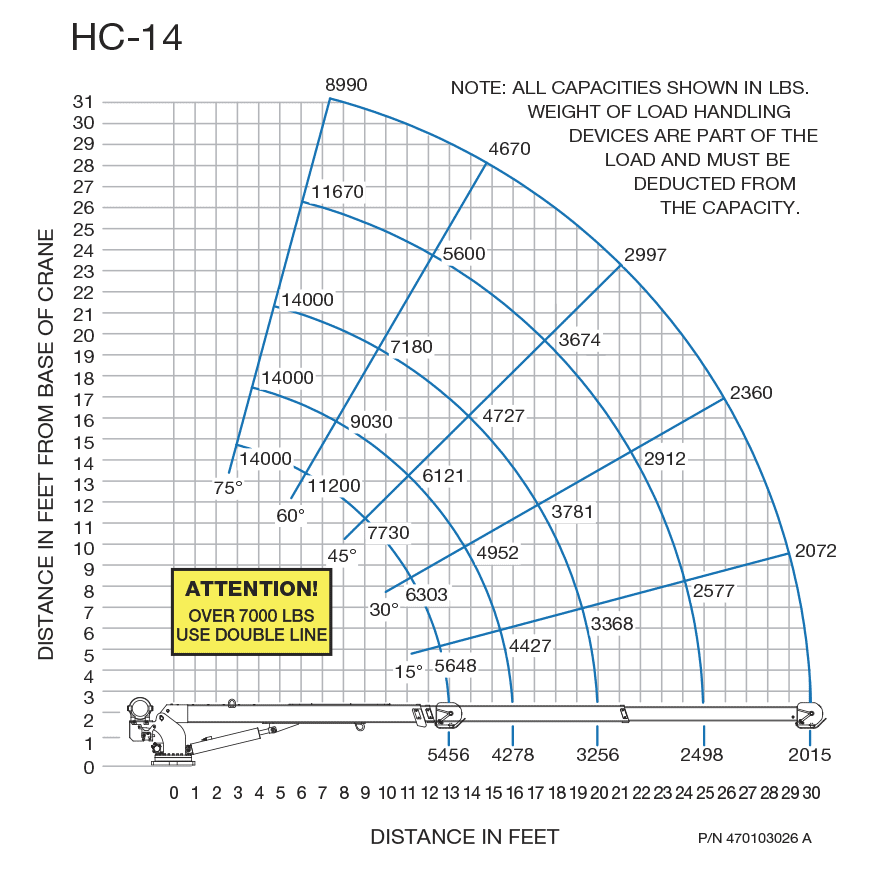

Hydraulic Crane with a 70,000 ft lb (9.68 tM) moment rating and a maximum lifting capacity of 14,000 lb (5,443 kg) at 6 ft. (1.83 m)

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with a 70,000 ft lb (9.68 tM) moment rating and a maximum lifting capacity of 14,000 lb (5,443 kg) at 6 ft. (1.83 m)

Automatic overload protection system Keeps people, equipment, and loads safer
Full, non-continuous power rotation '-370 Degrees movement for maximum versatility in lifting
Capable of lifting at 100% in all positions on Titan crane bodies with outriggers Maximized capacity for lifting
-12 Degrees to +75 Degrees boom elevation Greater work area capability with maximum range of working angle limits
Small sheave Fits into tighter spaces
120 ft (36.6 m) of 7/16" (12.7 mm) aircraft quality cable
Stowed Boom Length: 15' 9" (4.8 m)
Extended Boom Length: Width: 2' 3" (.68 m)
Width: 2' 3" (.68 m)
Height: 3' 3" (.99 m)
Base Plate Dimensions: 20.5" x 24.5" (.52 m x .62 m)
Single Line Speed: 60 ft/min (18.3 m/min)
OSHA 1910.180 ANSI B30.5

Limited two-year factory warranty
