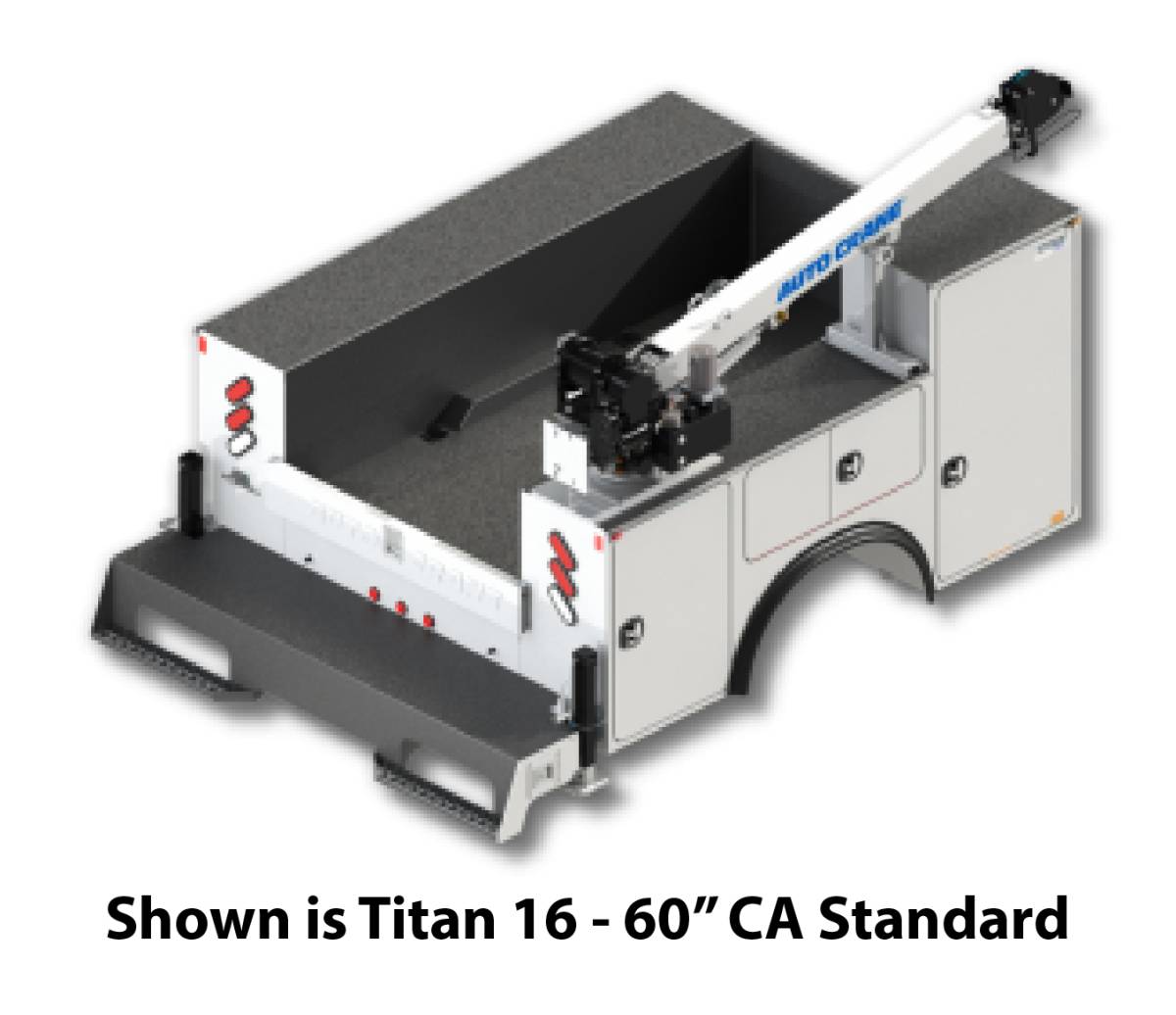

Auto Crane Titan Crane Body (Titan 16)

AUTC:Titan 16

Titan Crane Body with a capacity of 16,000 ft lb (2.21 tM)

Please Call for Availability
800.877.0338

Description

Patented one-piece 10 gauge side-pack design for rugged, offroad use minimizes weld seams for less cracking and rust. Integral crane box transfers load directly to outriggers reducing stress on the chassis -- reinforced up to 16,000 ft lb (2.21 tM). Internal stainless steel hinges reduce potential corrosion points. Double-paneled galvanneal doors for added strength. Fully undercoated for rust prevention.
  • Double-paneled galvanneal doors for added strength
  • Gas shock door closers reduce wear-and-tear
  • Rounded door corners throughout reduce effect of load on stress points
  • Flush door panels with bulb seal gasket and functional full-length drip rail for dryer compartments
  • Fully stable throughout lifting radius of the crane for maximized crane capacity
  • Large, flush-mounted, angled, stop-tail-turn lights for better visibility
  • Four or six heavy-duty tie downs for payload security
  • Three-point latching system provides secure door closures
  • Fenderettes add protection to the body at the wheel well
  • Unobstructed crane compartment maximizes usable cargo space
  • Double-paneled, slammable tailgate for one hand ease-of-use
  • Complete shelf package to optimize storage needs
  • Applicable Service Cranes: 2003, 3203H, 3203EH, 4004EH
  • Options- Manual outriggers. 8", 12" or 20" bumper (200mm, 305mm, 508mm). Receiver hitch. Rope and dome lights for compartments. Flood lights. Crane boom support. Master locking system. Grab handles. Oxy/acetylene bottle holder
  • Substructure: Interlocking channel frame reduces weight while increasing rigidity
  • Chasis Requirements- 10,900 GVWR 4944 kg GVM. 34" (864 mm) frame rail width. Dual rear wheels -- 93.75" (2.38 m) overall width. Truck stability will govern the actual approved working loads that will apply at different points of rotation. (Actual chassis requirements should be determined by adding weight of body, crane, accessories, and anticipated cargo).

Warranty

Limited two-year factory warranty
