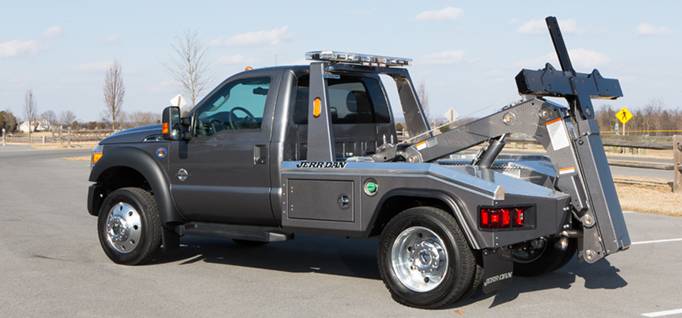

Jerr-Dan MPL-NG (MPLNG)

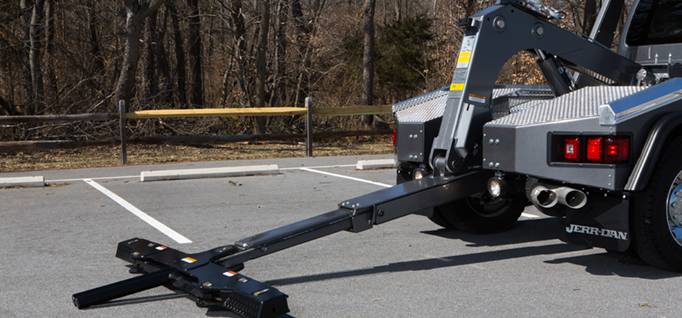

Jerr-Dan’s MPL-NG series offers smart design and unrelenting performance thanks to its modular aluminum body and our patented Underlift Level Stop Assist System, which prevents wasting precious set-up time. Jerr-Dan’s patented LOCKLINK® mechanism locks wheel-retaining arms in the full tire engaged position. The Negative Tilt Feature on the wheel lift is perfect for vehicles in parking ramps and the 4-1/2″ high hydraulic crossbar, with 4,000 lb. capacity, assures clearance for even the lowest profile vehicles. The body has a clear deck top and offers more space for storage, while the headboard provides great visibility. The hydraulic valve on the MPL-NG is positioned for easier servicing to get you on the road and back in business faster.

Features:

• Corrosion-resistant modular aluminum body
• Polished aluminum rails and diamond deck
• Low-maintenance No-Lube™ technology
• Enclosed aluminum pylon
• LED DOT lighting
• Illuminated driver and passenger-side toolboxes

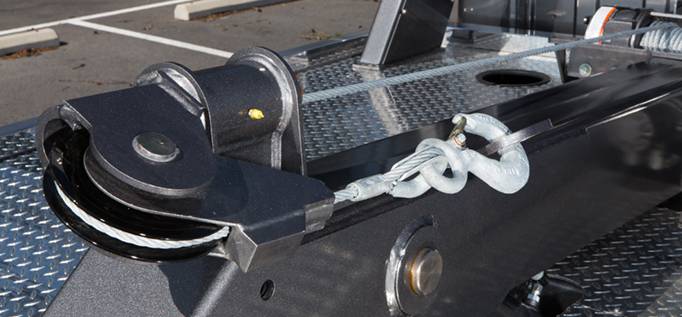

• Winch includes manual-free spool and tensioner
• Adjustable underlift Level Stop Assist System®
• Back-up alarm
• Manual / fixed L-arms grid option
• Hydraulic self-loader (including the patented LOCKLINK® over-center locking mechanism) grid option
• Manual / pivoting L-arms grid option

Miscellaneous:

• 24" tunnel toolbox (84" CA required)
• Fifth wheel & gooseneck trailer adapters
• Motorcycle towing adapter (hydraulic grid only)
• Remote underlift and winch controls
• Tow sling
• Tow dollies & storage brackets
• Ready stone guards
• D-rings
• Rubber wheel chocks
• Fire extinguisher
• Safety triangle kit

• Chassis:

  • Minimum RBM (Resisting Bending Moment): 460,000 in.-lbs. (230,000 in.-lbs. per frame rail)
  • Minimum Usable CA (Cab to Axle Centerline): 60"
  • Minimum Usable GVWR (Gross Vehicle Weight Rating): 11,000 lbs.
  • Maximum unloaded frame height: 36"
  • Minimum frame length behind the center of rear axle: 36"
• Underlift Capacity: 4,000 lbs. fully extended
• Winch Capacity: 8,000 lbs. - 3/8" x 75' wire rope (single worm)
