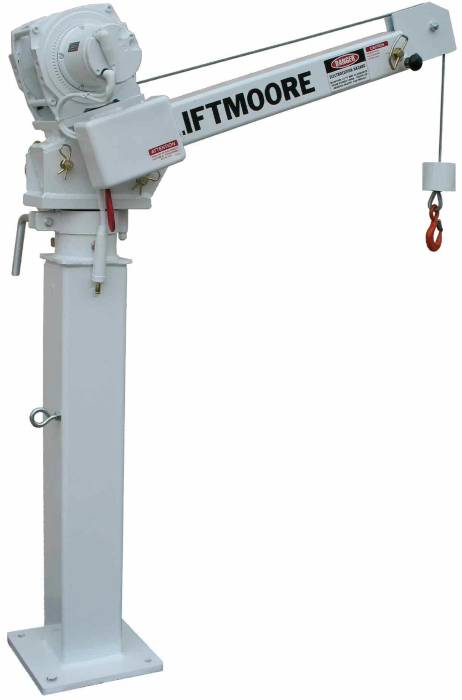

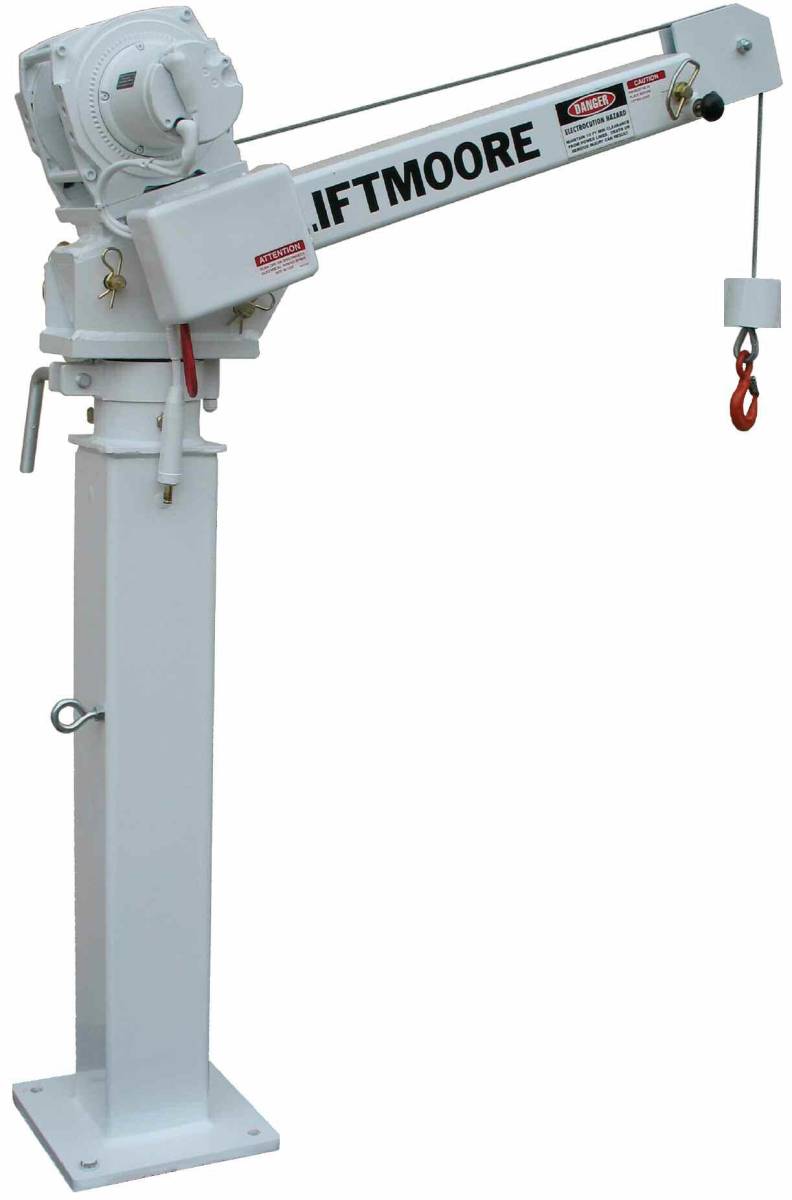

Liftmoore DC Powered Crane: L-21W Series (L-21WS-7 ATB)


DC Powered Crane with 6,000 ft.-lb. moment rating and 2,000 lb. max capacity.

Please Call for Availability


DC Powered Crane with Maximum Capacity 2,000 Lbs. at 3 Ft. Load radius
  • Maximum Capacity 2,000 Lbs. at 3 Ft. Load radius
  • Planetary Gear Winch with 2.7 HP Permanent Magnet Motor: 2,000 lb. single line capacity
  • Pedestal is eliminated, baseplate added for mounting on service body compartment top.
  • On / Off 12 Volt Electric Remote Pendant Control 12.5 Ft. (removable)
  • Galvanized Aircraft Cable 1/4" x 62 Ft. w/ Swivel Hook (7,000 Lbs. Breaking Strength)
  • Down haul pickle weight
  • Manual Rotation 360 Degree - Tapered Roller Bearings for ease of movement with a Manual Band Brake to control swing
  • Boom Elevation - Manual at two positions 20 and 45 Degrees, Stows vertically for travel
  • Optional Boom Extension - Manual from 3 Ft. to 7 Ft.
  • Includes ATB, needed when crane is used in construction as per 1926.1441(d)(2) & 1926.1416(d)(3)
  • Mounting plate is 12" square with a 9.5" square bolt pattern.
  • Designed with the Water & Sewer Maintenance Departments in Mind.
  • Included: Battery Power Cable #4 x 25 Ft. Circuit Breaker, 150 Amp. Ground Cable #4 x 3 Ft. for the factory battery to the truck frame. Mounting Bolts Grade 8: 0.50" x 2.75" (Four). Recommended Installation Instructions. Owners Manual
  • Requirements: Consistent 12 Volt DC power source with sufficient amperage while crane is running under load. Installer must assure the vehicle can maintain an appropriately level condition when the crane is in use under load.
  • Recommended: A dedicated battery, Group 31, deep cycle, near the crane is advised. Jackstand to provide stability and an appropriately level condition. Minimum Recommended Vehicle GVWR 6,100 lbs.


  • LIFT:L-21WS-7 ATB
  • LIFT:L-21WS-7 ATB
  • Liftmoore
  • New
