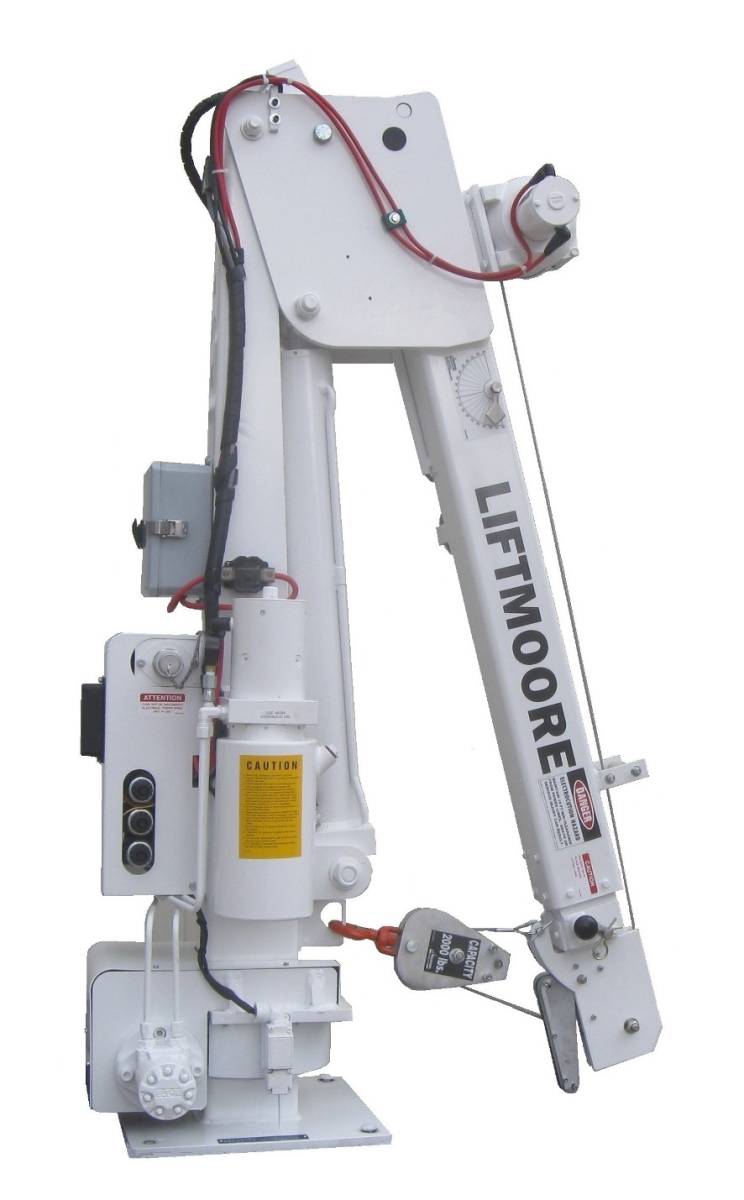

Liftmoore DC Powered Crane: LA10K Series (LA10K EX-11 ATB)
LIFT:LA10K EX-11 ATB
DC Powered Crane with 10,000 ft.-lb. moment rating and 2,000 lb. max capacity
Please Call for Availability
800.877.0338
Description
DC Powered Crane with Maximum Capacity 2,000 Lbs. at 5 Ft. Load radius
- Maximum Capacity 2,000 Lbs. at 5 Ft. Load radius
- Planetary Gear Winch with 2.7 HP Permanent Magnet Motor: 2,000 lb. single line capacity
- On / Off 12 Volt Electric Remote Pendant Control 18 Ft. (removable)
- Galvanized Aircraft Cable 7/32" x 40 Ft. with Ball Bearing Swivel Hook, Ball Bearing allows hook to swivel under load
- Down haul pickle weight Power Rotation - Unlimited Rotation on a slewing ring driven by a low speed high torque hydraulic motor
- Boom Elevation - Full Power (-70 Deg. To 60 Deg.)
- Boom Extension - Power 5.5 Ft. - 8.5 Ft.; Manual to 11.5 Ft.
- Counter balance valve (holding valve on both cylinders)
- Overload Protection System
- Includes ATB, needed when crane is used in construction as per 1926.1441(d)(2) & 1926.1416(d)(3)
- Mounting plate is 15" square with a 12" square bolt pattern.
- Optional wireless radio controls are available (wireless controls maintain the use of standard wired pendant).
- Included: Battery Power Cable #1 x 25 Ft. with Quick Disconnect Mecon. Circuit Breaker, 150 Amp. Ground Cable #4 x 3 Ft. for the factory battery to the truck frame. Master Disconnect Switch and Bracket. Mounting Bolts Grade 8: 0.50" x 2.50" (Four). Terminal Lugs #1 GA 0.25 Dia. (2). Terminal Lugs #1 GA 0.37 Dia. (2). Bubble Level . Crane-Truck Stability Plate . Recommended Installation Instructions. Owners Manual
- Requirements: Consistent 12 Volt DC power source with sufficient amperage while crane is running under load. Installer responsible for meeting OSHA stability requirements of 29 CFR -1910.180 (c)(1)
- Recommended: A dedicated battery, Group 31, deep cycle, near the crane is advised. 12K Outriggers for meeting vehicle stability requirements. Minimum Recommended Vehicle GVWR 10,000 lbs.
