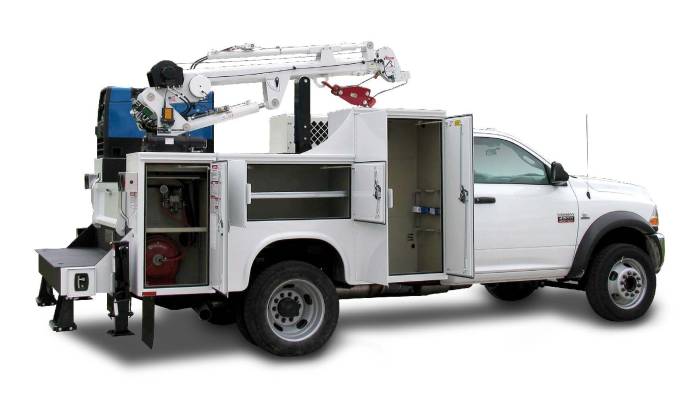

Knapheide 60J Crane Body, maximum crane rating of 60,000 ft-lb (60J)


Knapheide Crane Bodies are purpose-built to hold up under the most extreme of lifting conditions.

Please Call for Availability


The 60J bodies are designed to support a maximum crane rating of 60,000 ft-lb. with ease, and designed to handle the rigors of your everyday extreme lifting using a unique torq-isolator support system understructure. Knapheide Crane Bodies are purpose-built to hold up under the most extreme of lifting conditions. Corrosion won't be a concern when you buy quality Knapheide products. To give you the best corrosion protection, we utilize a stateof-the-art, custom-designed, 12-step, SST cathodic electrodeposition finishing system, called "E-Coat."It bonds prime paint to steel by an electroplating process to give you a superior coat of primer, resulting in better corrosion protection compared to spraying methods. This system allows us to create products with the highest level of corrosion resistance available. With all the industry-leading security and durability features of our Service Bodies, the Knapheide Crane Body is an easy choice.
    Crane Bodies feature no standard shelving.
  • Optional shelving and drawer packages are available (see PDF)
  • THE MOST ADVANCED CRANE BODY DESIGN Every Knapheide Crane Body features our unique torq-isolator crane support system. The reinforced crane box transfers lift forces into the full-length torsionbox subframe and outriggers, not the side compartments.
  • Compartment doors constructed of double-shell, 14-gauge outer panel, and two-sided A-40 galvanneal steel internal reinforcement for durability and long life
  • 1/8" tread plate floor, tops, and backs. Full-seam continuous welded.
  • Compartments feature 12-gauge bottom and end panels
  • Vertical compartment doors employ double-spring over-center door retainers for elimination of involuntary swing
  • Side wall shelf clips with 2" adjustable spacing
  • Medium gloss, mar-resistant, light gray finish brightens interiors and makes finding contents easier
  • Rugged 12- and 14-gauge two-sided A-40 galvanneal steel body shell
  • Neoprene door seals protect compartments from the weather
  • Continuous stainless steel hinges are pry-proof and corrosion-resistant
  • Fixed shelf in crane compartment
  • Two chrome grab handles
  • Bolt-on slammable tailgate
  • S/T/T, B/U, marker and RID lights with light wire harness
  • Aluminum light boxes for external mounting of rear lights
  • Overlap doors on front vertical and horizontal compartments
  • Automotive quality 3-point T-handle latches
  • Drip pan under crane mount
  • Electrodeposition prime-paint system provides superior corrosion resistance
    • Other features:
    • Rubber fenderettes (model 6132DLHR-60J only)
    • 14-gauge inner partitions of compartments
    • Complete undercoating provides protection from corrosion and road debris
    • Cargo tie-downs are D-ring type and recessed in floor, with a 6,000-lb. capacity (4 in 108" bodies, 6 in 132" bodies)
    • Pre-drilled mounting holes on crane pedestal for ease of installing most popular cranes


  • KNP:60J
  • KNP:60J
  • Knapheide
  • New
