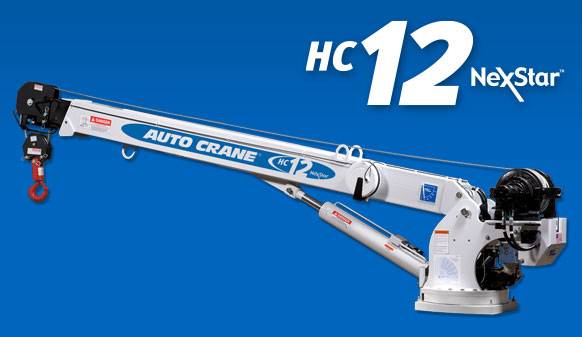

Auto Crane Hydraulic Crane (HC-12 Series)

AUTC:HC-12 Series

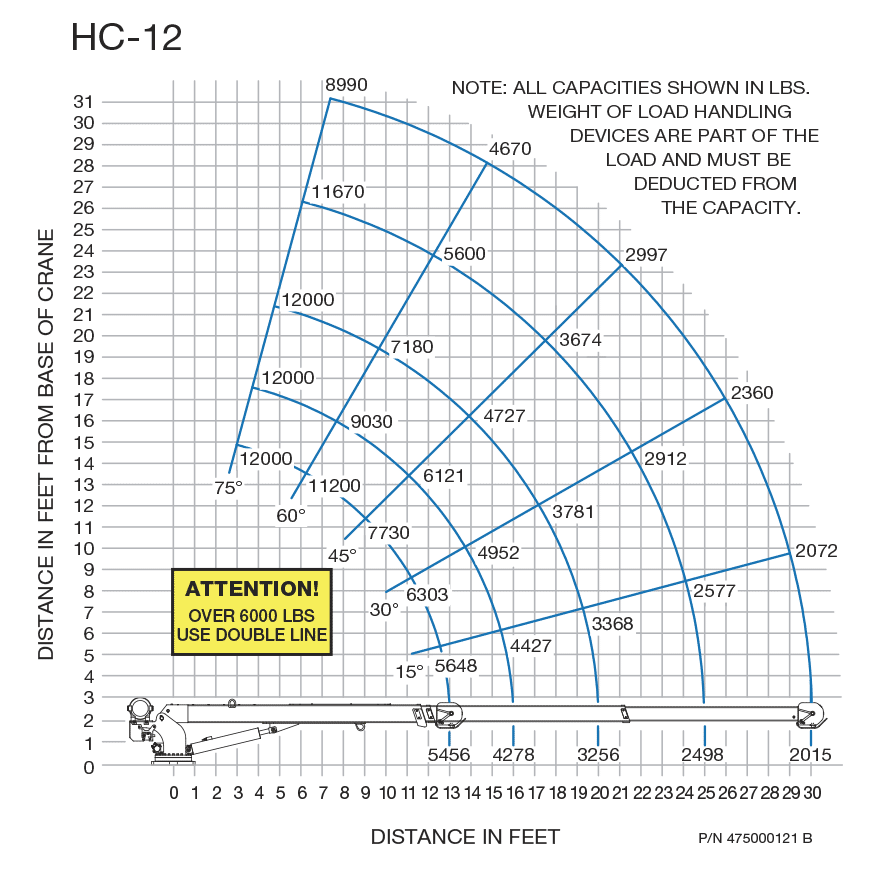

Hydraulic Crane with a 70,000 ft lb (9.68 tM) moment rating and a maximum lifting capacity of 12,000 lb (5,443 kg) at 6 ft. (1.83 m)

Please Call for Availability
800.877.0338

Description

Hydraulic Crane with a 70,000 ft lb (9.68 tM) moment rating and a maximum lifting capacity of 12,000 lb (5,443 kg) at 6 ft. (1.83 m)
  • Automatic overload protection system Keeps people, equipment, and loads safer
  • Full, non-continuous power rotation -370 Degrees movement for maximum versatility in lifting
  • Capable of lifting at 100% in all positions on Titan crane bodies with outriggers Maximized capacity for lifting
  • -12 Degrees to +75 Degrees boom elevation Greater work area capability with maximum range of working angle limits
  • Small sheave Fits into tighter spaces
  • 120 ft (36.6 m) of 7/16" (12.7 mm) aircraft quality cable
  • Stowed Boom Length: 15' 9" (4.8 m)
  • Extended Boom Length: Width: 2' 3" (.68 m)
  • Width: 2' 3" (.68 m)
  • Height: 3' 3" (.99 m)
  • Base Plate Dimensions: 20.5" x 24.5" (.52 m x .62 m)
  • Single Line Speed: 60 ft/min (18.3 m/min)
  • OSHA 1910.180 ANSI B30.5

Warranty

Limited two-year factory warranty
