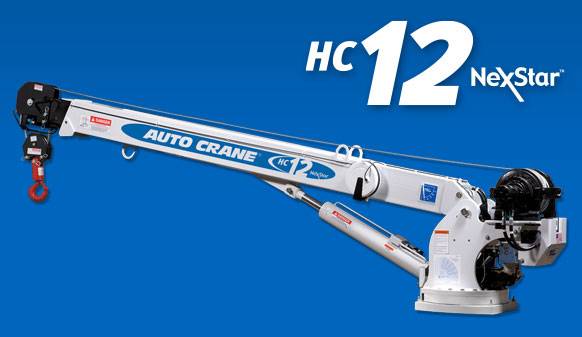

Auto Crane Hydraulic Crane (HC-12 Series: NexStar Models)

SKU: HYDHC-12 Series: NexStar Models

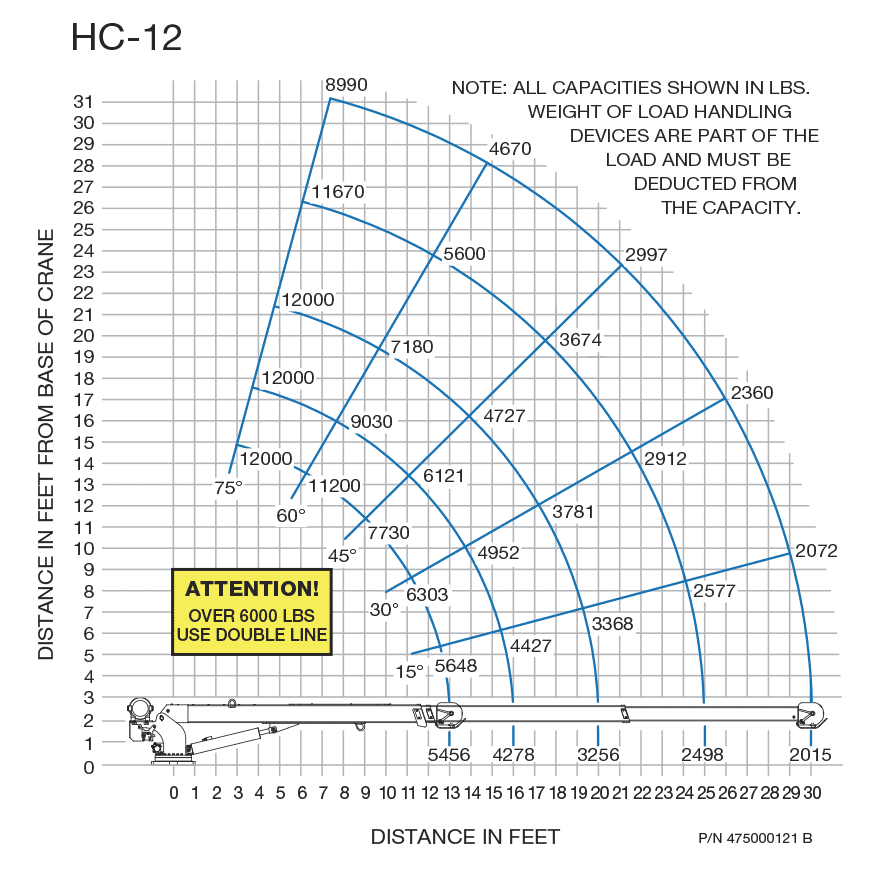

Hydraulic Crane with a 70,000 ft lb (9.68 tM) moment rating and a maximum lifting capacity of 12,000 lb (5,443 kg) at 6 ft. (1.83 m)

Please Call for Availability

800.877.0338

Description

Hydraulic Crane with a 70,000 ft lb (9.68 tM) moment rating and a maximum lifting capacity of 12,000 lb (5,443 kg) at 6 ft. (1.83 m)

Proportional control of multiple functions simultaneously and independently Adjust any function anytime to a different speed, for total control over the load
Level sensors monitor the angle of the truck and crane with the NexStar FM remote system on a Titan crane body Prevents operation in unsafe, unlevel conditions
Automatic stop at 100% load capacity Keeps people, equipment, and loads safer
Adjustable speed settings; from 25% to 100% Enables fine tuning of speeds for total control over the load
The NexStar FM remote system receiver displays load-monitoring and diagnostic readouts in plain English No codes to look-up or memorize; operator views precise percentage load capacity
NexStar available with either tethered or fully-featured wireless remote options Your choice for preferred control method
Transmitter is IP66 rated and CE certified Sealed and water protected for maximum durability
120 ft (36.6 m) of 7/16" (12.7 mm) aircraft quality cable
Stowed Boom Length: 15' 9" (4.8 m)
Extended Boom Length: Width: 2' 3" (.68 m)
Width: 2' 3" (.68 m)
Height: 3' 3" (.99 m)
Base Plate Dimensions: 20.5" x 24.5" (.52 m x .62 m)
Single Line Speed: 60 ft/min (18.3 m/min)
OSHA 1910.180 ANSI B30.5

Limited two-year factory warranty
